EAD系列型泵是臥式、軸向端吸、徑向排出、單級單吸離心泵泵組,泵結構為后開式結構,拆開泵蓋和葉輪時不需拆卸吸水和排出管路,懸架內裝有兩個球軸承(H型結構有一個雙列向心推力軸承),泵通過彈性柱銷聯軸器由電機直接驅動(其他連接和驅動方式可以按照用戶具體情況而定)。渦室、底腳、進水法蘭和出水法蘭鑄成一體。
適用于輸送清水及物理化學性質類似于水的介質,介質溫度-10℃~85℃(105℃),液體動力黏度系數應小于150cSt(大于20cSt時性能需要修正);顆粒度小于3mm的懸浮液也可抽吸,但會磨蝕相關部件,影響泵的壽命。
本泵結構簡單,性能可靠,體積小,重量輕,抗汽蝕性能好,能耗低,使用維修方便.

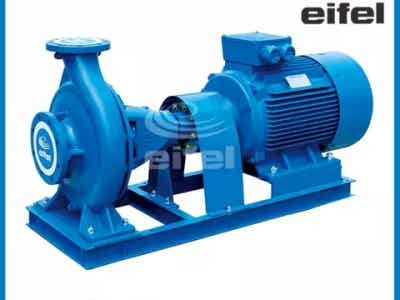

High Quality Horizontal Single-stage Water Pump Set
Product Description
| Pump type |
EAD series direct-coupled single stage end suction centrifugal pump with motor |
| Design Standard | European standard BS EN733/DIN24255 |
| Structure | Direct-coupled,Axial End-Suction,Single-Stage,Volute Casing,Back pull-out |
| Discharge Size | DN32~300mm |
| Flange | DIN2501 PN16 GB/T17241.6 PN1.6 |
| Motor | IEC standard motor |
| Casing | Cast Iron standard,Ductile Iron/ASTM304/ASTM316 options on request |
| Impeller | Brass standard,Cast Iron/ASTM304/ASTM316 options on request |
| Shaft | ASTM420 standard,ASTM304/ASTM316/ASTM1045 options on request |
| Shaft Seal | Mechanical Seal standard,Gland Packing options on request |
| Flow Rate(Q) | 4~1584m3/h |
| Head(H) | 2~150m |
| Speed | 1450/2900rpm(50Hz);1750/3500 rpm(60Hz) |
| Max Temperature | 85°C(standard);105°C(option on request) |
| Working Pressure | 1.0MPa(standard);1.6MPa(option on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
| Advantage | Interchangeable parts,high effective,high performance,voice-saving, easily installed and maintained |
| Applications | Water supply and drainage,HVAC and Cooling Tower,booster and pressurization set,irrigation and agriculture,fire-fighting system,plants,mines,marine-ballasting&bilge,food and chemical industry(with stainless steel),etc. |
